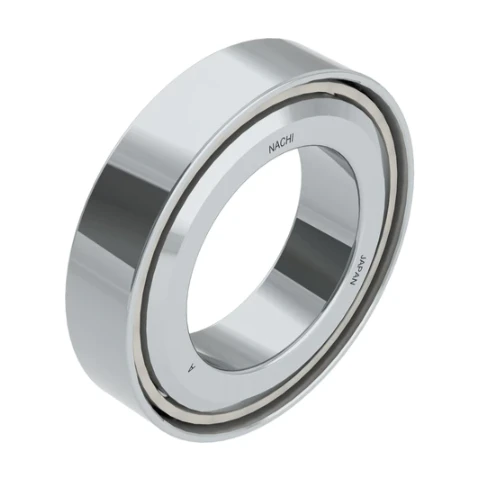

A ball screw support bearing is a type of bearing specifically designed to support and facilitate the smooth operation of ball screws in machinery and equipment. Ball screws are used to convert rotational motion into linear motion with high efficiency, and the support bearing plays a critical role in maintaining the alignment, stability, and performance of the ball screw assembly.

Key Functions of a Ball Screw Support Bearing:

1. Load Support: The ball screw support bearing absorbs the loads acting on the ball screw. It helps to carry both radial loads (from the rotational motion) and axial loads (from the linear motion).
2. Prevent Axial Movement: In ball screw assemblies, it's crucial to prevent axial movement (end play) or unwanted displacement. The support bearing helps to limit or control axial movement, ensuring the ball screw operates with precision.
3. Accuracy and Precision: These bearings are designed to keep the ball screw assembly aligned, which is critical for linear accuracy in systems like CNC machines, robotics, or any precision automation system.
4. Smooth Operation: By reducing friction and supporting the rotating screw, the bearing helps ensure smooth and efficient motion, reducing wear and extending the service life of the ball screw.

Types of Ball Screw Support Bearings:

1. Angular Contact Ball Bearings: These are often used in ball screw assemblies because they can handle both radial and axial loads. The contact angle allows the bearing to carry significant axial loads, which is important in ball screw applications.
2. Thrust Bearings: In some cases, thrust ball bearings are used for ball screw support, as they are designed to handle axial loads more effectively.
3. Preloaded Bearings: Ball screw support bearings are often preloaded to eliminate any clearance (play) in the system, ensuring there’s no unwanted movement that could affect precision.
4. Double-Row Bearings: For increased load-carrying capacity and stability, double-row bearings are sometimes used in ball screw support systems.

Applications of Ball Screw Support Bearings:

• CNC Machines: Used to ensure precise movement in machine tools, where ball screws are responsible for accurate linear positioning.
• Robotics: Critical in robotic systems, where ball screws enable precise motion along linear axes.
• Automated Assembly Lines: Ball screws are used in automated equipment to move components accurately along a specific path.
• Aerospace and Defense: For precision applications where ball screws help in controlling movement of various parts or components.
• Medical Equipment: Ball screws are used in devices requiring high precision, such as MRI machines or robotic surgery tools.
