A cam follower is a specialized type of rolling element bearing designed to follow the contour or profile of a cam. It’s commonly used in mechanical systems where motion needs to be translated, guided, or timed—like in automation, engines, or manufacturing equipment.

What It Does

A cam follower rides along a cam surface (which may be rotating, oscillating, or translating) and transfers that motion to another part of the mechanism. It’s essentially a rolling contact between the cam and the follower, minimizing friction and wear.

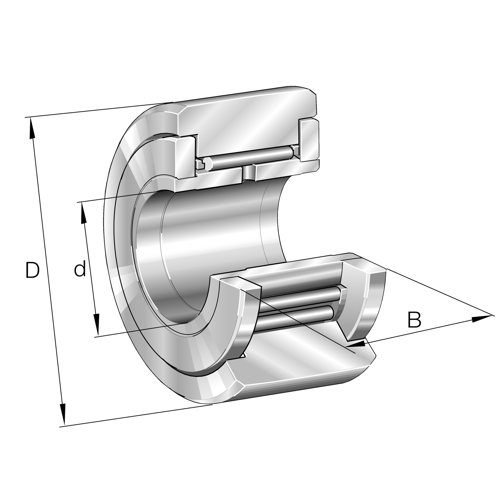

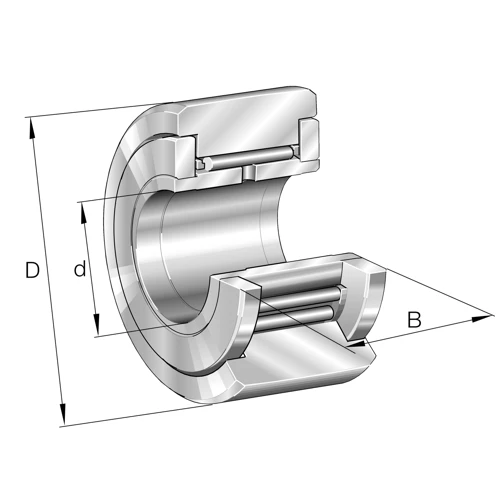

Key Components

1. Stud or Yoke: Acts as the shaft or housing that supports the follower.
   • Stud type: Has a threaded shaft for easy mounting.
   • Yoke type: Has a hole through the body for a pin or shaft to go through.
2. Outer Roller: The outside of the follower that makes contact with the cam.
   • May be flat or crowned (slightly curved) to reduce edge loading.
3. Rolling Elements: Bearings (needle rollers or balls) inside the follower reduce friction and allow smooth motion.

Types of Cam Followers

Applications

• Engines: In valve trains, to open and close valves based on the camshaft rotation.
• Packaging and textile machines: Where timed and precise movements are needed.
• Automation and robotics: For guided movement in cam-driven actuators.
• Conveyors and material handling: As guide rollers or tracking elements.

Advantages

• Handles high loads and repetitive motion
• Minimizes wear and friction compared to sliding followers
• Easy to install and replace
• Supports both linear and rotary motion control
